A few years ago, through the direct replacement of the Razer Warranty Warranty Policy, it will take two years to double-click the emperor to replace it with a 2014 version of Naga Brachio. Razer's fretting life has been the biggest headache for players. I have just It was also very tangled at the beginning, and later it was opened, because the real playing (DIAO) home (SI) is already a necessary skill for its own minor changes (please ignore it). The Naga Brahma is a brand new unopened one. After the sale, the mouse can only be warranted for 3 months (the original emperor was still a few days away). Basically it was innocent, so it was ready. Feel free to change your mind at any time.
The super-running in the mouse: Razer Naga Vatican 2014 version of the mouse 2 years ago, a website could not afford to seduce the temptation to buy a Razer Emperor 3.5G mouse, thinking about using this high-end mouse to play the game will be more comfortable, the results obtained It was found that the hand feel is not as good as one would think. One is that the mouse is too heavy, the other is the mouse is too big, and I feel my hand is not adapted to the shape of the mouse, but since it has already been bought, it will only be enough. Some time ago I discovered that the left mouse button was double-clicked. After checking the Internet, I found out that this mouse was made with domestic micro-motion. The quality is confidential | Like 10 Comments21 Favorites9View detailsIt took almost three years for the result to be finely moving, but it was actually a problem with the mouse pulley. The screen of the mouse was erratic and erratic. The sliding web could slide upwards, or it could slide down and play. When you touch the pulley in the game, the visual field zooms in and out, just like you can't find the focus. The fretting had been seen badly, and the pulleys were really bad, but at first I thought that it was the middle button fretting that was broken, but then I thought that the micro-motion of the middle button was broken and it was impossible to click instead of sliding the problem. Then I looked for the cause everywhere. Only know that the encoder is broken.

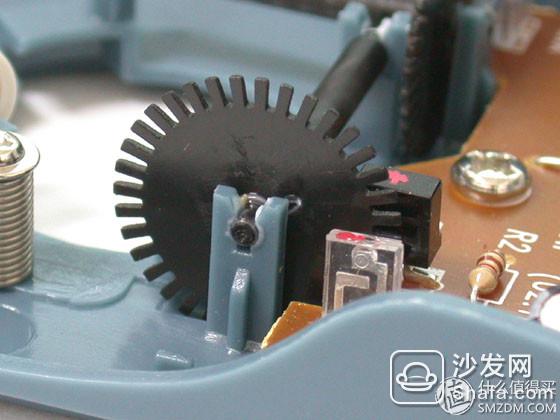

Early grating encoders are silly
Now the grating encoder, the grating is integrated inside the pulley
The mouse encoder is a sensor that converts the rolling angular displacement of the mouse wheel into an electric signal. The early mouse used a grating encoder, which used the infrared to generate the signal. The infrared of the encoder The launcher is not in direct contact with the wheel, so it has a long lifespan. Now some Logitech models are still used, but this type of encoder is more complicated and the infrared emitting device consumes more electricity. The wireless mouse is basically not used, and most of the brands have been fully developed. With mechanical encoders, Razer is one of them. Mechanical encoder is simple, but it is easy to wear, life is generally 0.1 ~ 0.2M times, the highest is only 0.5M times, unlike the 5M start fretting life.
Workers must first sharpen their tools to make good use of their tools. It is essential that they repair their own set of soldering irons. This includes soldering irons, brackets, tin absorbers, tin wire, and rosin. The richest family can purchase them for more than 20 years. The power is not too big, but it is easy to weld badly. Of course, a set of screwdrivers is also needed.
Encoder is not a common thing, so in order to find out what model of Naga serpents the encoder takes a few hours, and finally through the comparison to find the use of TTC encoder, TTC is a genuine branch of electricity, a company in Huizhou, His family's micro-motion and mechanical axis are more famous, domestic brands use more, Sai Rui KANA, Razer's python, emperor's coffin TTC micro-motion, millet mechanical keyboard's TTC axis, quality is OK, Can compete with foreign brands.
The naga serpentine encoder model number is. According to the nomenclature of the TTC encoder, the lifetime of this encoder is 200,000 times from the model number. In general, TTC has the best lifespan of 500,000 times, and torque It is a standard 20-35gf.cm, medium resistance. Unlike other encoders that are soldered directly to the circuit board, this encoder is a plug-in type, this design is easy to replace, without worrying about the welding technology but the circuit board is burned out. The only problem is that the Nagafan snake's encoder plug is custom-made, not the same as the original TTC.
Naga Brass snake encoder _ Taobao search Taobao search is the most intelligent commodity search engine, through the operation of big data, accurate understanding of goods and users, providing accurate personalized search experience. Direct links to s.taobao.comEncoder this stuff really did not sell, but fortunately there is a million richest man, but only two to sell, postage is more expensive than the product, so buy two, so as not to get a hand-welding is not a bad one Postage
The first time the mouse was disassembled and the foot mat was inexperienced, the focus was double-layered, only the bottom layer was peeled off, the adhesive layer remained on it, and the foot pad was basically scrapped.
4 screws are under the mat, do not like this design, a new set of mats will be prepared for demolition
Unscrew the screws. All other places are buckled. Pull it slowly to open it. Naga Brahma snake's side keys are connected with the circuit board with a cable, very dislike cable, very easy to break.
Do not forget to pull out the top cover cable
Naga Brass snake's scroll wheel hides the circuit board of the breathing light. Unscrew the left screw to take it down.
The pulley is not fixed by screws. It is clamped on the bracket on the circuit board. It takes a lot of force to open it. The white socket in the lower right corner is the encoder.
The removed roller is also attached to the bracket
Roller directly from the bracket on the line
This is a new encoder that is bought back. Note that the connector is used for soldering. The original plug is plugged directly in, so the original cable must be replaced with a new one.
A person began to work. Aunt Zhang helped me. The candy I had sent was not willing to eat. The result was melted and formed a special group. I used it as a decoration. Occasionally, I used to use a paper town encoder with three wires. Root two black white, remember the order. In addition, the solder joints of the encoder are very small. Be careful not to accidentally click on the encoder. To solder such a small solder joint, do not use a solder sucker. The soldering iron should be flattened. The 3 points can be melted once. Then the original wire is welded up. When the soldering is done, the solder joints are hard to see. When you use it, you don't give it a close-up. In the end, the original road was installed. When the equipment was installed, it was found that when the line was removed, the force was too strong. The side of the socket was disconnected, and it was reluctant to put it on. Later, if it was used, the vibration could pop up.
The mouse of the encoder has been revived and can be revived for another 1 or 2 years. In fact, as long as the circuit board is not bad, the mouse can still be used for a long time, of course, mainly because of the poor. The new encoder feels smaller than the original resistance, and the sense of phase is also very weak. I do not know if the power is too large when welding, and the iron contact time is too long. However, the problem is not great. The scroll wheel basically browses the web page anyway. When used, the game with high requirements for the mouse is basically not available, and it is now waiting for the slightest movement.
